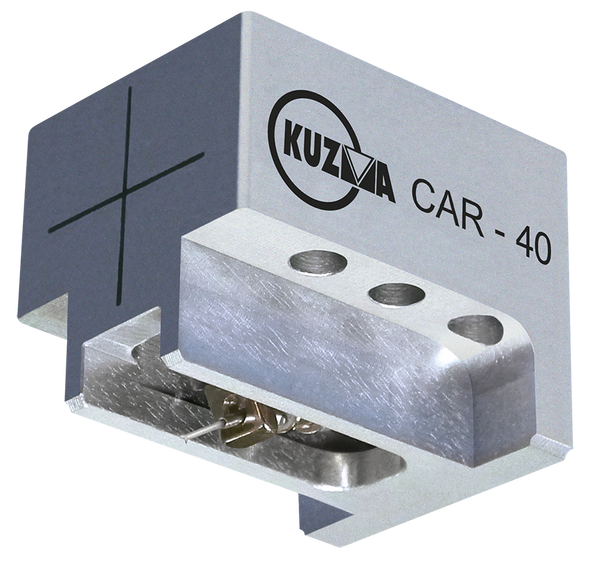

Kuzma CAR-40 MC Cartridge

Kuzma CAR-40 MC Cartridge


With improved Silver coil wire and a Boron Catilever, the CAR-40 is a significant step-up in design and performance from the CAR-20 and CAR-30.

With three sets of mounting holes for versatile mounting, the Kuzma CAR cartridges can be mounted on nearly any tonearm.

"Every time I lowered the Car 40 pickup into the groove, the presentation sounded so unobtrusively and unostentatiously pleasing that I soon abandoned notes and forgot completely about my reviewing chores. It was all about the music." - Paul Seydor, The Absolute Sound.

  • Type: Moving Coil
  • Coil Wire: 4N Silver
  • Cantilever Material: Boron
  • Stylus: Microridge
  • Frequency Response: 10Hz-40KHz
  • Output Voltage: 0.3mV
  • Channel Balance: <1dB
  • Channel Separation: >28dB
  • Tracking Force: 2.0gr
  • Compliance: 10x10-6cm/dyne
  • Trackability: 70μm/2.0gr
  • Internal Impedance:
  • Load Impedance: >100Ω
